GU型磁芯
- 質量穩定:實行全過程質量監控,一絲不茍,檢測!
- 合理的價格:有效的內部成本控制,減少開支,為客戶服務!
- 快速交貨:完善的生產線,充足的庫存,縮短交貨時間!
- 電話:15955032233
- 傳真:0539-6015306
- 郵箱:351856373@qq.com、sales@yfcore.com
介紹

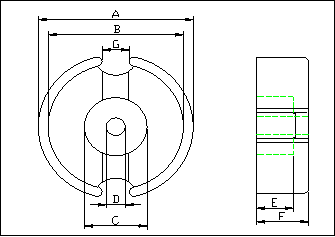

型號 | 毛重 | 尺寸 | ||||||
A | B | C | D | E | F | G | ||
GU14/9 | 5 | 14.2±0.25 | 11.95±0.2 | 5.85±0.2 | 2.9±0.1 | 4.45±0.1 | 3.8±0.6 | |
GU26/16 | 26 | 25.5±0.5 | 21.5±0.3 | 11.3±0.2 | 5.5±0.15 | 5.6±0.1 | 8.0±0.1 | 3.8±0.6 |
GU30/19 | 40 | 30.0±0.5 | 25.4±0.4 | 13.3±0.2 | 5.5±0.15 | 6.6±0.1 | 9.45±0.1 | 4.3±0.6 |
GU36/22 | 67 | 35.6±0.6 | 30.4±0.5 | 15.9±0.3 | 5.5±0.15 | 7.4±0.1 | 11.0±0.1 | 4.4±0.6 |
GU48/30 | 148 | 47.5±0.5 | 40.8min | 19.2±0.4 | 5.8±0.2 | 10.6±0.3 | 14.8±0.3 | 8.4±0.6 |
GU50 | 178 | 50.0±0.5 | 44.0±0.5 | 16.0±0.3 | 17.0±0.3 | 20.0±0.3 | 6.2±0.6 |
型號 | 有效參數 | AL±25%(nH/N^2) | 凈重 | |||||||
C1mm | -1 | Lemm | Aemm | 2 | Vemm | 3 | PC40 | |||
GU14/9 | 0.790 | 19.8 | 25.1 | 495 | 2000 | 4.5 | ||||
GU26/16 | 0.400 | 37.6 | 93.9 | 3530 | 4600 | 20.0 | ||||
GU30/19 | 0.330 | 45.2 | 137.0 | 6190 | 5700 | 34.0 | ||||
GU36/22 | 0.260 | 53.2 | 202.0 | 10700 | 7300 | 60.0 | ||||
GU48/30 | 0.230 | 72.7 | 313.4 | 22780 | 7300 | 134.0 | ||||
GU50 | 0.43 | 96.9 | 226.0 | 21900.0 | 5000 | 160 |
