EPC型磁芯
- 質量穩定:實行全過程質量監控,一絲不茍,檢測!
- 合理的價格:有效的內部成本控制,減少開支,為客戶服務!
- 快速交貨:完善的生產線,充足的庫存,縮短交貨時間!
- 電話:15955032233
- 傳真:0539-6015306
- 郵箱:351856373@qq.com、sales@yfcore.com
介紹

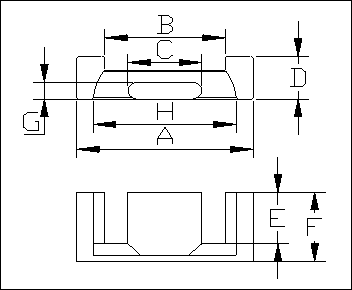

型號 | 毛重 | 尺寸 | |||||||
A | Bmin | C | D | E | F | G | Hmin | ||
EPC13 | 2.5 | 13.3±0.3 | 8.3 | 5.6±0.2 | 4.6±0.2 | 4.5±0.2 | 6.6±0.2 | 2.1±0.1 | 10.5 |
EPC17.8 | 5.6 | 17.8±0.4 | 11.5 | 7.4±0.2 | 6.0±0.2 | 6.0±0.2 | 8.7±0.2 | 2.8±0.1 | 14.3 |
EPC34 | 62 | 34.0±0.5 | 19.7 | 14.5±0.2 | 14.5±0.2 | 16.4±0.2 | 20.9±0.2 | 9.1±0.2 | 24.8 |
EPC39 | 78 | 39.0±0.7 | 24.7 | 17.6±0.3 | 15.5±0.2 | 14.1±0.3 | 19.6±0.2 | 9.7±0.1 | 30.5 |
EPC41 | 108 | 41.0±0.6 | 23.6 | 18.5±0.2 | 16.5±0.2 | 18.9±0.2 | 24.5±0.2 | 11.0±0.2 | 28.8 |
型號 | 有效參數 | AL±25%(nH/N^2) | 凈重 | |||||||
C1mm | -1 | Lemm | Aemm | 2 | Vemm | 3 | PC40 | |||
EPC13 | 2.46 | 30.6 | 12.5 | 382.0 | 870 | 2.1 | ||||
EPC17.8 | 1.77 | 40.2 | 22.7 | 917.0 | 1200 | 4.5 | ||||
EPC34 | 0.73 | 89.6 | 122.6 | 10985.0 | 3200 | 56.0 | ||||
EPC39 | 0.60 | 87.95 | 147.0 | 12960.0 | 3700 | 70.5 | ||||
EPC41 | 0.57 | 104.1 | 183.2 | 19064.0 | 4100 | 97.0 |
