AR型磁芯
- 質量穩定：實行全過程質量監控，一絲不茍，檢測！
- 合理的價格：有效的內部成本控制，減少開支，為客戶服務！
- 快速交貨：完善的生產線，充足的庫存，縮短交貨時間！
- 電話：15955032233
- 傳真：0539-6015306
- 郵箱：351856373@qq.com、sales@yfcore.com
介紹

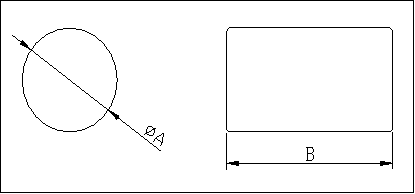

| 型號 | 毛重 | 尺寸 | 重量 | |||
| A | B | |||||
| AR1.7/14 | 0.16 | 1.7±0.1 | 14.0±0.5 | 0.15 | ||
| AR2.8/12 | 0.36 | 2.8±0.2 | 12.0±0.5 | 0.35 | ||
| AR3/12 | 0.42 | 3.0±0.2 | 12.0±0.5 | 0.41 | ||
| AR3.8/16 | 0.90 | 3.8±0.2 | 16.0±0.5 | 0.87 | ||
| AR4/18 | 1.14 | 4.0 | 0 | 18.0±0.5 | 1.1 | |
| -0.3 | ||||||
| AR5.4/21 | 2.38 | 5.4 | 0 | 21.0±0.5 | 2.3 | |
| -0.3 | ||||||
| AR6/15 | 2.07 | 6.0 | 0.2 | 15.0±0.5 | 2.0 | |
| -0.3 | ||||||
| AR6/20 | 2.69 | 6.0 | 0.2 | 20.0±0.5 | 2.6 | |
| -0.3 | ||||||
| AR6/25 | 3.42 | 6.0 | 0.2 | 25.0±0.5 | 3.3 | |
| -0.3 | ||||||
| AR6/30 | 4.15 | 6.0 | 0.2 | 30±0.5 | 4.0 | |
| -0.3 | ||||||
| AR6/45 | 6.22 | 6.0 | 0.2 | 45±0.8 | 6.0 | |
| -0.3 | ||||||
| AR6/70 | 9.53 | 6.0 | 0.2 | 70±7.0 | 9.2 | |
| -0.3 | ||||||
| AR8/20 | 4.97 | 8.0±0.2 | 20.0±0.5 | 4.8 | ||
| AR8/25 | 6.22 | 8.0±0.2 | 25.0±0.5 | 6 | ||
| AR8/30 | 7.46 | 8.0±0.2 | 30.0±0.5 | 7.2 | ||
| AR8/45 | 11.19 | 8.0±0.2 | 45.0±0.5 | 10.8 | ||
| AR8/70 | 17.51 | 8.0±0.3 | 70.0±0.8 | 16.9 | ||
| AR8/90 | 22.49 | 8.0±0.3 | 90.0±1.0 | 21.7 | ||
| AR10/24 | 9.33 | 9.75±0.25 | 24.0±0.5 | 9.0 | ||
| AR10/30 | 11.71 | 10.0±0.2 | 30.0±0.5 | 11.3 | ||
| AR10/98 | 38.00 | 10.0±0.3 | 98.0±1.5 | 36.5 | ||
| AR12.5/100 | 60.50 | 12.5±0.2 | 100.0±1.5 | 58.5 | ||
| AR14/45 | 34.00 | 14.0±0.3 | 45.0±0.5 | 32.81 | ||
| AR16.3/25 | 27.00 | 16.3±0.3 | 25.0±0.3 | 25 | ||
| AR17.5/185 | 186.00 | 17.3±0.25 | 185.0±2.0 | 180 | ||
| AR19.5/100 | 141.00 | 19.5±0.5 | 100.0±1.5 | 136 | ||
| AR52/30 | 268.00 | 52.0±0.5 | 30.0±1.0 | 258 | ||
