RM型磁芯
- 質量穩定:實行全過程質量監控,一絲不茍,檢測!
- 合理的價格:有效的內部成本控制,減少開支,為客戶服務!
- 快速交貨:完善的生產線,充足的庫存,縮短交貨時間!
- 電話:15955032233
- 傳真:0539-6015306
- 郵箱:351856373@qq.com、sales@yfcore.com
介紹

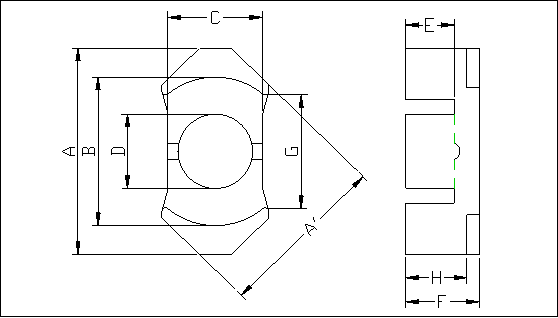

型號 | 毛重 | 尺寸 | ||||||||
A1 | A | B | C | D | E | F | Gmin | H參考 | ||
RM6 | 5.6 | 14.4±0.3 | 17.55±0.35 | 12.65±0.25 | 8.0±0.2 | 6.3±0.1 | 4.1±0.25 | 8.8±0.25 | 8.8 | 10.3±0.3 |
RM8 | 13.6 | 19.3±0.4 | 22.7±0.5 | 17.3±0.3 | 10.7±0.3 | 8.4±0.2 | 5.5±0.25 | 11.4±0.25 | 9.5 | 14.3±0.3 |
RM10 | 24 | 24.1±0.6 | 27.8±0.7 | 21.6±0.5 | 13.2±0.3 | 10.7±0.2 | 6.3±0.25 | 9.3±0.25 | 10.9 | 16.2±0.3 |
RM12 | 49 | 29.2±0.6 | 36.7±0.7 | 25.5±0.5 | 15.8±0.3 | 12.6±0.2 | 8.5±0.25 | 11.85±0.25 | 16.8 | 21.6±0.3 |
RM14 | 77 | 34.1±0.6 | 41.5±0.7 | 29.6±0.6 | 18.7±0.3 | 14.7±0.3 | 10.6±0.25 | 15.1±0.25 | 17.0 | 27.0±0.3 |
型號 | 有效參數 | AL±25%(nH/N^2) | 凈重 | |||||||||
C1mm | -1 | Lemm | Aemm | 2 | Vemm | 3 | PC40 | ZH7K | ZH10K | |||
RM6 | 0.784 | 29.2 | 37.0 | 1090.0 | 2150 | 6000 | 8600 | 4.9 | ||||
RM8 | 0.604 | 38.4 | 63.0 | 2440.0 | 3300 | 8750 | 12500 | 12.0 | ||||
RM10 | 0.462 | 44.6 | 96.6 | 43100.0 | 4000 | 11200 | 16000 | 22.0 | ||||
RM12 | 0.388 | 56.6 | 146.0 | 8340.0 | 5000 | 13000 | 17700 | 45.0 | ||||
RM14 | 0.35 | 70 | 198.0 | 13900.0 | 5700 | 14500 | 19600 | 67.0 |
