PM型磁芯
- 質量穩定:實行全過程質量監控,一絲不茍,檢測!
- 合理的價格:有效的內部成本控制,減少開支,為客戶服務!
- 快速交貨:完善的生產線,充足的庫存,縮短交貨時間!
- 電話:15955032233
- 傳真:0539-6015306
- 郵箱:351856373@qq.com、sales@yfcore.com
介紹

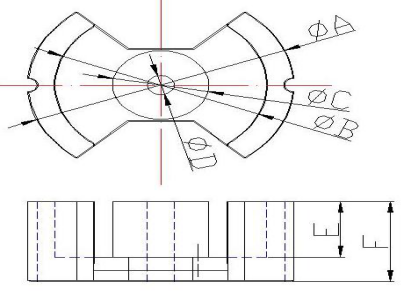

型號 | 毛重 | 尺寸 | ||||||
A | B | C | D | E | F | |||
PM50 | 172 | 49.1±0.9 | 39.6±0.6 | 19.7±0.3 | 5.5±0.1 | 13.4±0.2 | 19.9±0.2 | |
PM74 | 586 | 74.0 | +0 | 57.0min | 29.0±1.0 | 5.4±0.3 | 20.5±0.4 | 29.5±0.3 |
-3 | ||||||||
PM87 | 860 | 87.0 | +2 | 66.5min | 31.7±1.5 | 8.5±0.4 | 24.2±0.4 | 35.0±0.4 |
-3 | ||||||||
PM114 | 2200 | 114.0 | +0 | 88.0min | 42.3±0.7 | 5.6±0.3 | 31.9±0.4 | 46.3±0.4 |
-4.5 |
型號 | 有效參數 | AL±25%(nH/N^2) | 凈重 | |||||||
C1mm | -1 | Lemm | Aemm | 2 | Vemm | 3 | PC40 | |||
PM50 | 0.227 | 84 | 370.0 | 31000.0 | 7700 | 153 | ||||
PM74 | 0.162 | 128 | 790.0 | 101000.0 | 10000 | 515 | ||||
PM87 | 0.161 | 146 | 910.0 | 133000.0 | 13000 | 770 | ||||
PM114 | 0.116 | 200 | 1720.0 | 344000.0 | 16000 | 1940 | ||||
